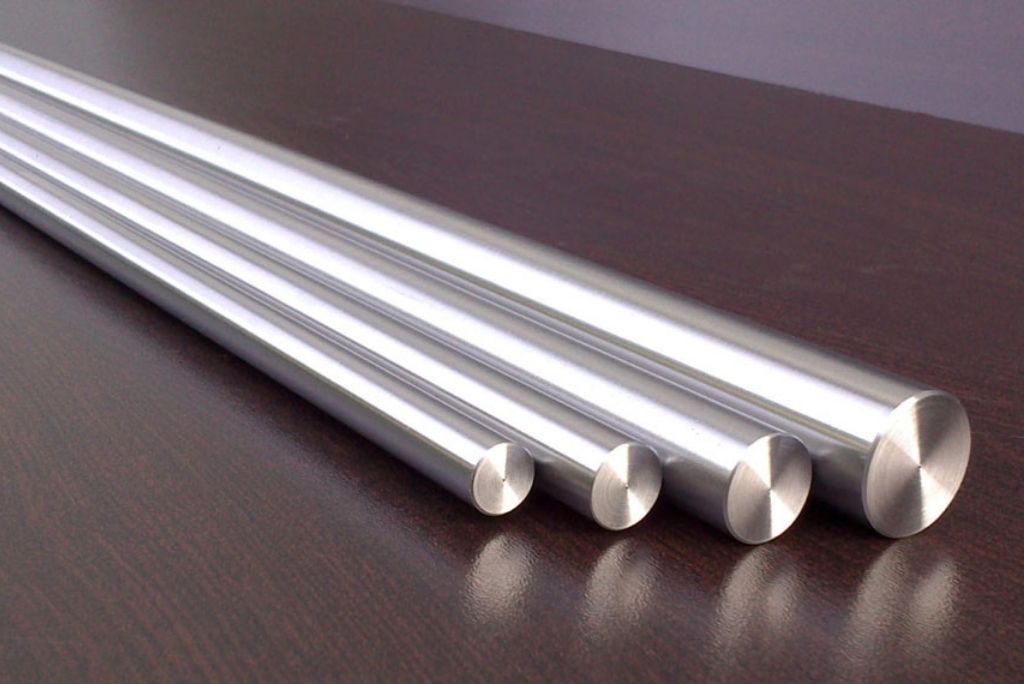

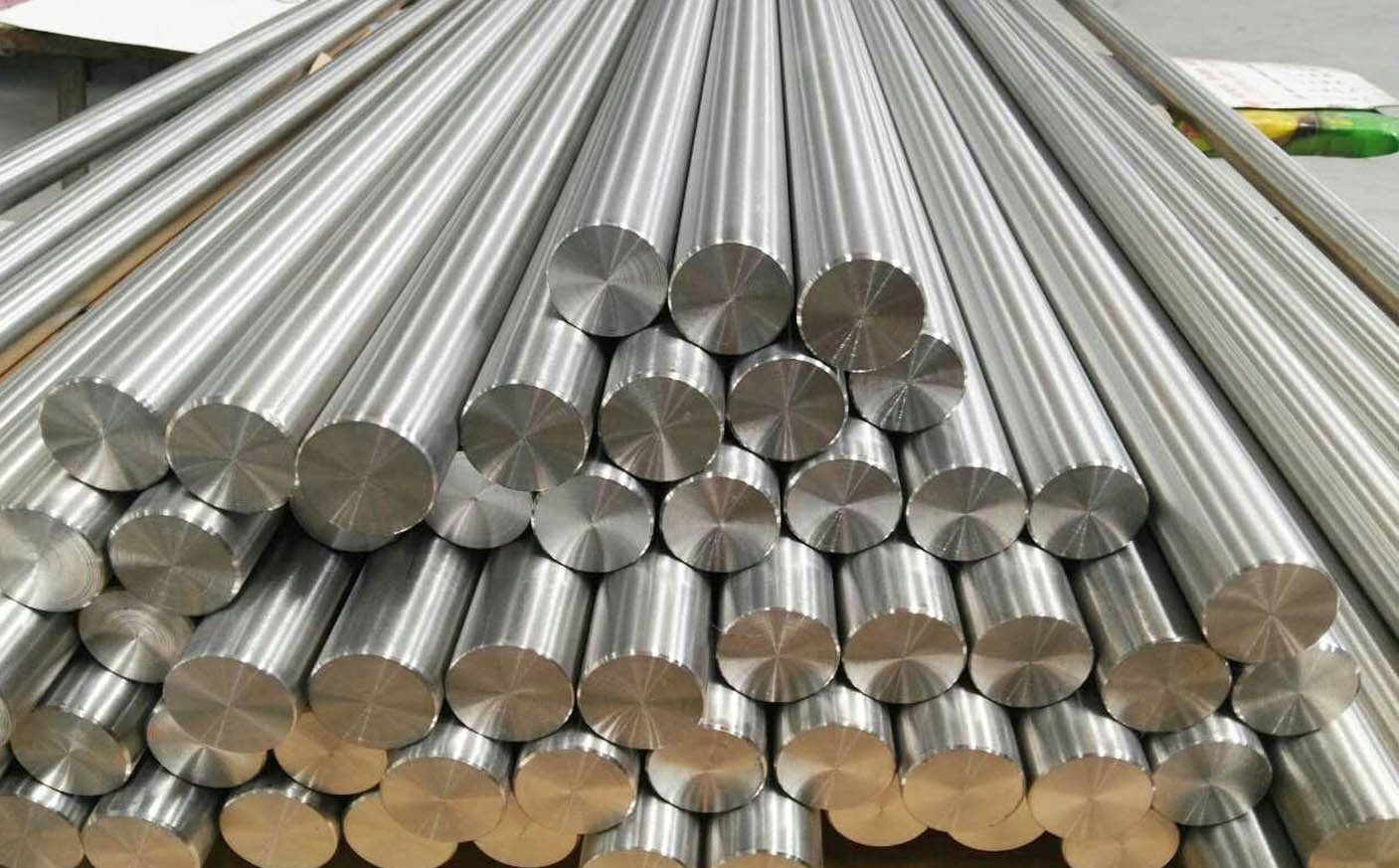

Ratnakar Steel India is a leading manufacturer and exporter of **Stainless Steel Round Bars**, providing high-strength solutions for the automotive, aerospace, and medical industries. Our round bars are recognized for their exceptional straightness, uniform grain structure, and superior surface finish.

Quality & Performance Analysis

Our round bars undergo precise peeling and centerless grinding to meet the tightest diameter tolerances, ensuring they are ready for high-speed CNC machining and critical engineering applications.

  • Diameter Range: 3mm to 600mm (Forged & Rolled)
  • Material Grades: 200, 300, & 400 Series (304, 316, 410, 416, 431)
  • Standard Compliance: ASTM A276, A479, ASME SA479, and DIN 17440
  • Finish Options: Bright, Polished, Black, Peeled, and Centerless Ground

Stainless Steel Round Bar Technical Data

Size & Geometry
DIAMETER: 3mm to 600mm TOLERANCE: h8, h9, h10, h11 (ISO 286-2) SHAPE: Cylindrical / Round Section STRAIGHTNESS: 0.5mm to 1mm per meter Max
Available Grades
AUSTENITIC: 201, 202, 303, 304/L, 316/L/Ti, 310S, 317L, 321, 347 MARTENSITIC: 410, 416, 420, 431 FERRITIC: 409, 430 PRECIPITATION HARDENING: 17-4PH, 15-5PH
Technical Ratings
TENSILE STRENGTH: 500 to 950 Mpa ELONGATION: 15% to 50% CORROSION RESISTANCE: Excellent in Acidic & Marine environments
Surface Finish & Condition
FINISH: Bright, Polished, Peeled, Smooth Turned, Centerless Ground CONDITION: Cold Drawn, Hot Rolled, Solution Annealed, Black
Key Applications
Pump Shafts & Axles Aerospace & Defense Components Surgical & Medical Equipment Marine Propellers & Fittings
Testing & Compliance
STANDARDS: ASTM A276, A479, A484, DIN 17440 INSPECTION: 100% PMI, Ultrasonic, Eddy Current Testing CERTIFICATION: NACE MR0175, ISO 9001:2015

Our Production Workflow

We utilize advanced heat treatment and cold-working processes to enhance the mechanical properties of our round bars, delivering a product that withstands high pressure and corrosive environments.

01. Grade Selection

Identifying the ideal alloy (e.g., 304L for welding or 416 for free-machining) for your application.

02. Precision Grinding

Utilizing centerless grinding to achieve h8, h9, or h11 diameter tolerances for seamless machining.

03. Quality Testing

Comprehensive crack detection and PMI testing to ensure 100% material integrity and compliance.
